Label

The concept of labels is similar to the ROI-concept, but labels are "painted" on the image and are visualized differently. Each pixel in the image can be assigned to a label. The labels can be thought of as an extra layer on top of the image. The labels are useful in tasks such as classification

tip

Press F7 to open the Label Properties.

Draw a label

Label drawing is easy with the drawing tool:

1. Click Label in the drawing tool.
2. The mouse pointer changes from to indicating that label drawing is activated.
3. Left-click to start drawing and use the mouse to draw the label.
4. Simply release the mouse button to finish the drawing.

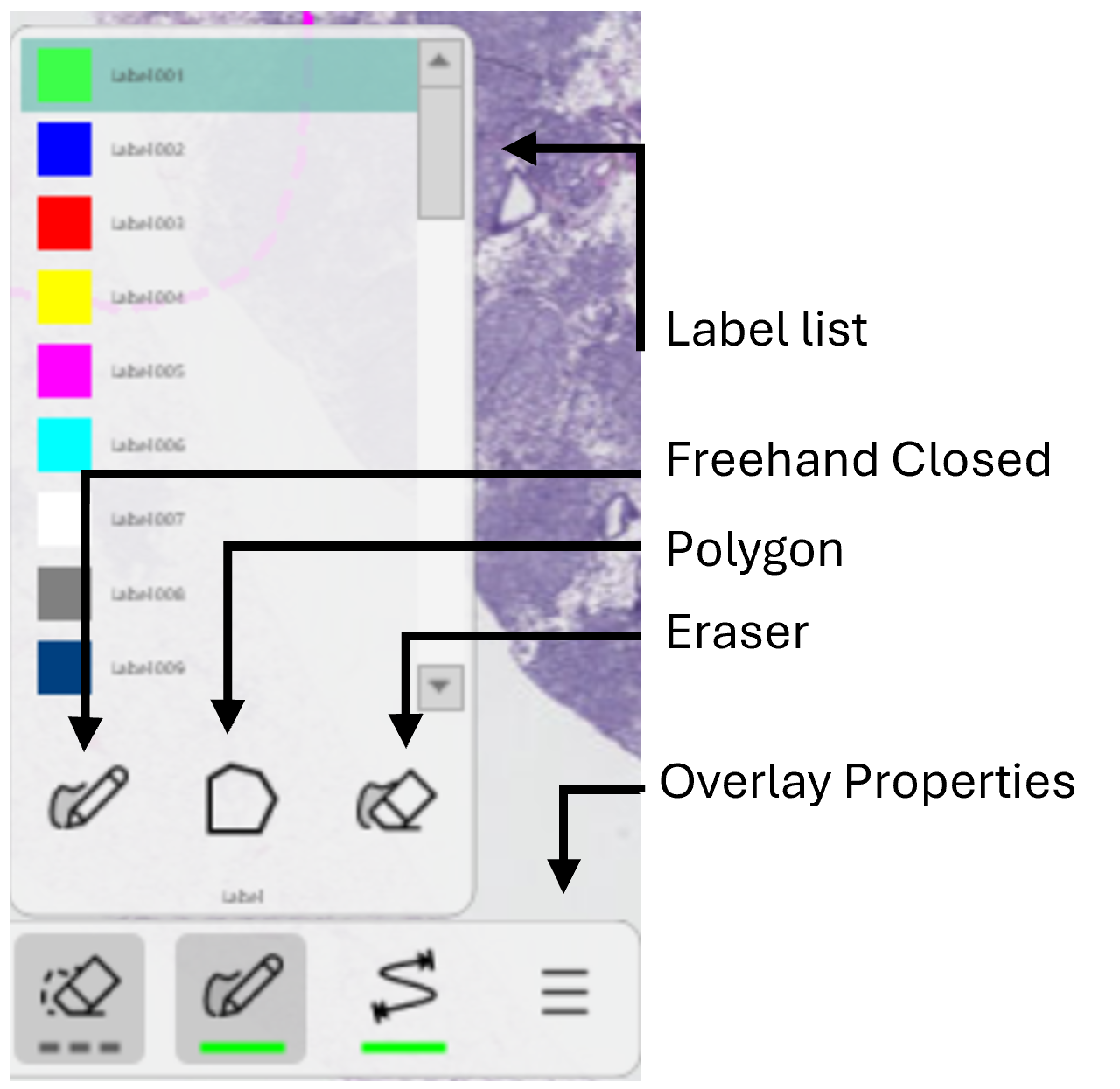

Notice that the current active Label is the label highlighted in the scrollable list in the expanded Wheel.

tip

When in drawing mode, press and hold the Shift key and then use the mouse to pan the image. Or press and hold the right mouse button to pan the image.

tip

The default drawing shape using the drawing tool is the polyline. Other shapes are available from the Draw page of overlay properties.

Change current active label

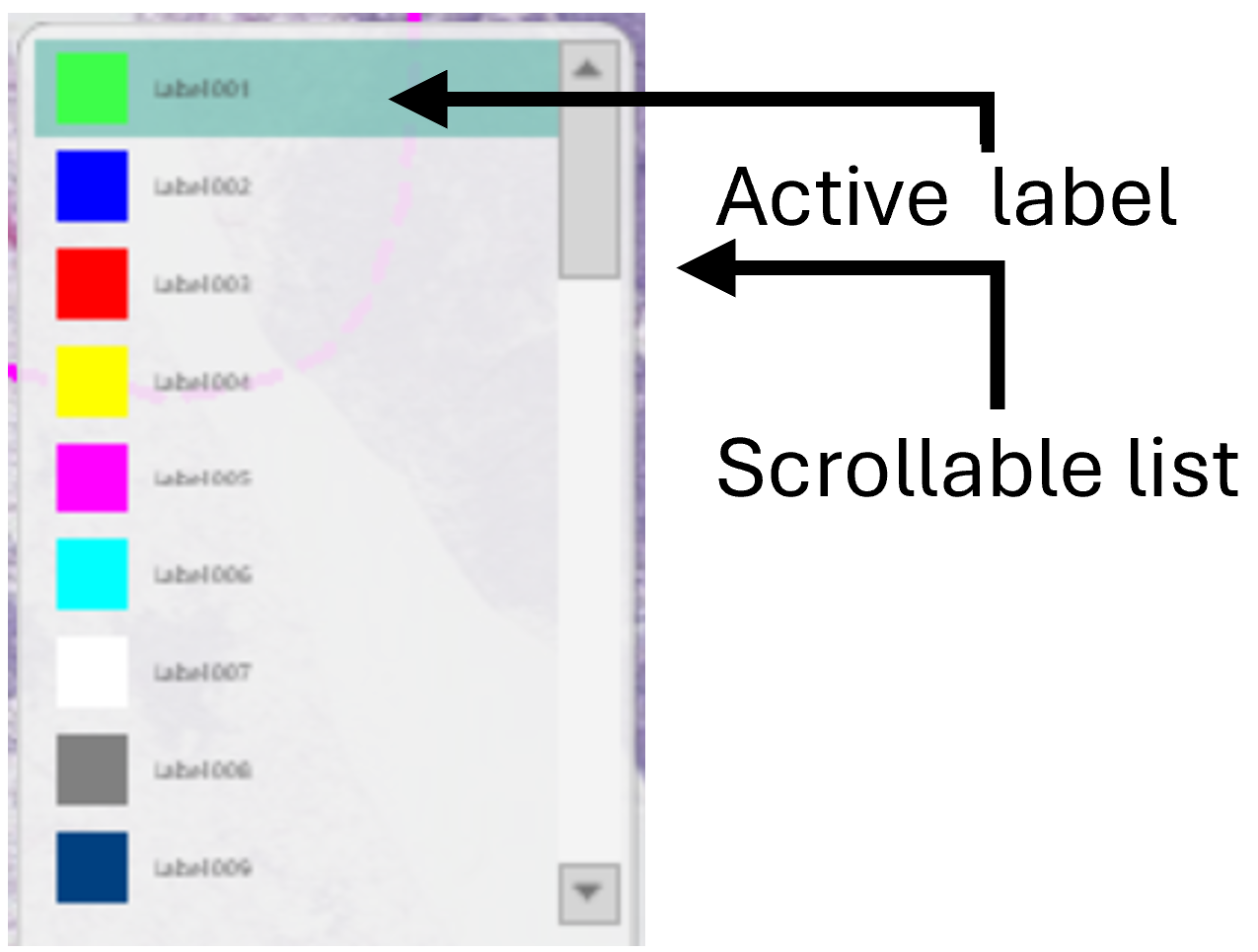

The current active label is the label highlighted in the scrollable list in the expanded drawing tool. Change the current label in the drawing tool by:

1. Hover over Label in the drawing tool to expand the Label overlay tool.

2. Hover over the list and use the mouse wheel to scroll the list.

3. Select the desired label from the list and start drawing the label.



Delete a label

To delete a single label, the Label drawing tool must be activated first:

1. Click Label in the drawing tool to activate Label drawing.
2. The mouse pointer changes from to indicating that Label drawing is activated.
3. Hover the mouse over the label to be deleted until it is highlighted in yellow.
4. While the label is highlighted, press the Delete key to delete the label.



   Hover over the label to highlight it and press the Delete-key to delete the label (Bladder tissue DAB stain).

tip

While highlighting a label, the overlay info box appears displaying information about the highlighted label.

Notice that the mouse pointer changes back to . To delete another label, repeat steps 1-5.

Delete all labels

To delete all labels, the Label drawing tool must be activated first:

1. Click Label in the drawing tool to activate Label drawing.
2. The mouse pointer changes from to indicating that Label drawing is activated.
3. Hold down the Shift key and press the Delete key to delete all labels.

Notice that the mouse pointer changes back to .

note

It is not necessary to highlight any labels to delete all labels.

Delete parts of labels

The erase tool can be used to delete a part of a label by:

1. Select Label in the drawing tool.

2. Select the Eraser tool at the top of the drawing tool.

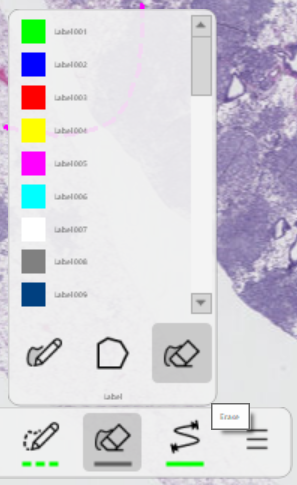

   The 'Erase by drawing' tool

3. The erasing tool works like the Polyline tool. Click and hold the left mouse button over the area that needs to be erased



   Default settings for eraser tool
