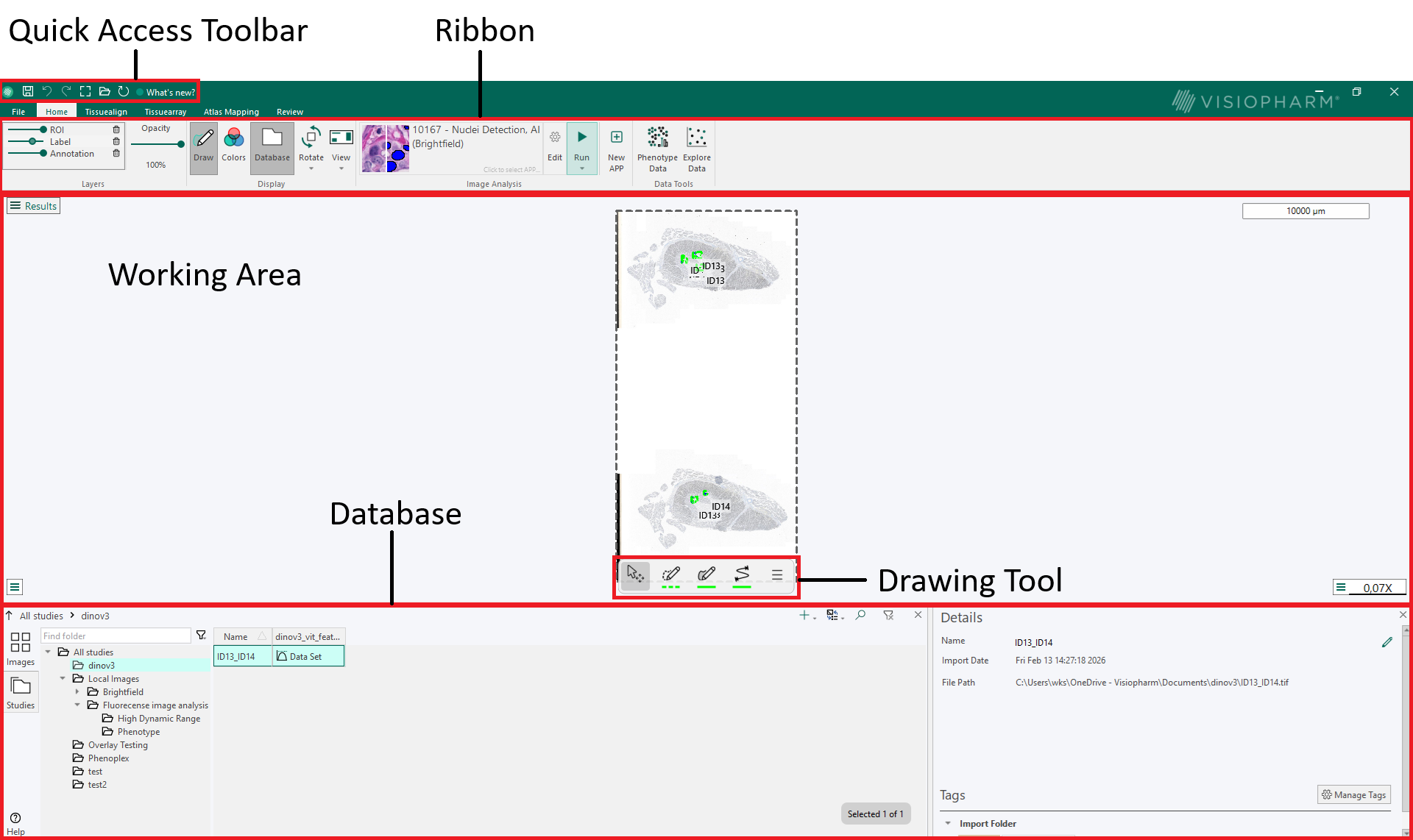

The main Visiopharm interface consists of several functional areas: the Working area, the Ribbon, the Drawing Tool and the Database. The layout can be changed by the user, if Layout Locked is unchecked in options. The layout is changed by dragging areas around to customize the layout.

Overview of the user interface
Overview of the user interface

Ribbon​

The Ribbon includes the following toolbars as well as general buttons and module-specific controls.:

  • The Quick Access Toolbar:
  • The Module tabs:

The module tabs allows the user to change between different installed Visiopharm modules. Modules are configured individually, but data can be transferred to and from other modules in Visiopharm. The general buttons are useful tools available in all modules. A detailed description of the Ribbon can be found in the Ribbon section.

Working area​

Displays images selected in the database. Most work is centered around this window.

note

Keyboard shortcuts only work if the working area is active. It is active if the mouse pointer looks like this. or this. If the working area is not active, click once inside it to activate it.

Drawing Tool​

The Drawing Tool provides a quick and easy way to access Visiopharm's overlay tools.

The Drawing Tool can be disabled from the Show tab in the General Buttons section of the Ribbon. More information can be found in the Drawing Tool section, including information about ROI, label, and annotation drawing and measure drawing.

Database​

The Database stores and organizes overlays, metadata and results associated with imported images.

The Database Toolbar includes the buttons and controls that handles the Database area. This includes options to 'Add' , 'Show', 'Search' and 'Clear Filters'. The 'Show' option includes the four options to view stored data; the detail format, the macro format, the label format, and the image format. For further information see the Database section.
